PlexArray SPRi system

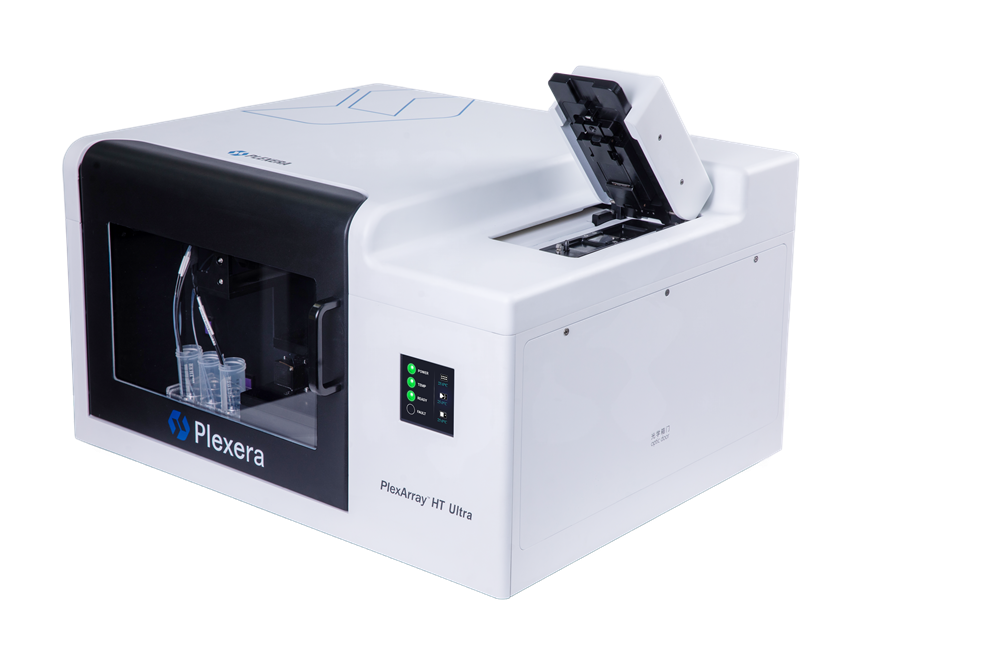

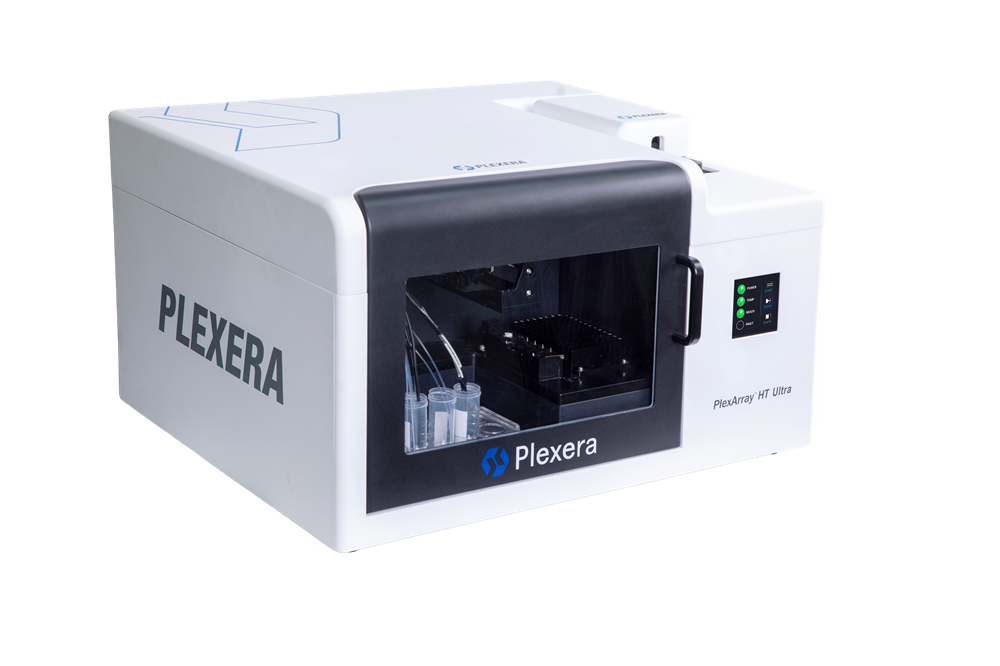

The Plexarry HT Ultra is the fourth generation SPRi instrument independently developed by Plexera, PlexArray ® HT Ultra uses two-dimensional CCD imaging to capture samples on the chip, enabling real-time analysis of interactions between various biomolecules without the need for labeling. The high-throughput capability of this system enables simultaneous analysis of the interactions between multiple antibodies or proteins, providing high-quality biological information such as kinetics, affinity, specificity, and concentration. The Plexarry HT Ultra analysis system, as a versatile and open platform, is widely used for the determination of various biological systems, including peptides, proteins, nucleic acids, small molecule compounds, organic compounds, drugs, toxins, as well as viruses and bacteria

Real time high-throughput molecular dynamics detection

A large detection area of 192cm2 enables traditional SPR instruments to detect 5000 channels

Record imaging, extract and automatically fit response signals in real-time

Real time results show that simultaneous experimental processing and data analysis are carried out

MM uM level affinity determination

It only takes 5-10 minutes to complete the measurement of a single sample

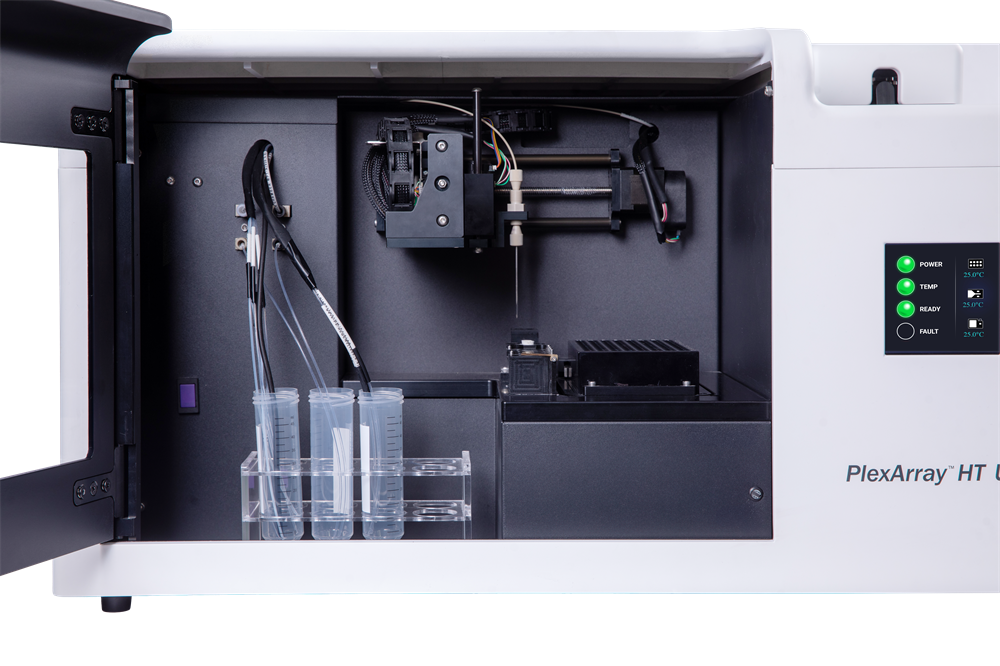

Automatic Sample Injection - Sample Recovery

24-hour unmanned operation, continuous injection of 96 samples, 4 ℃ temperature control to ensure sample activity

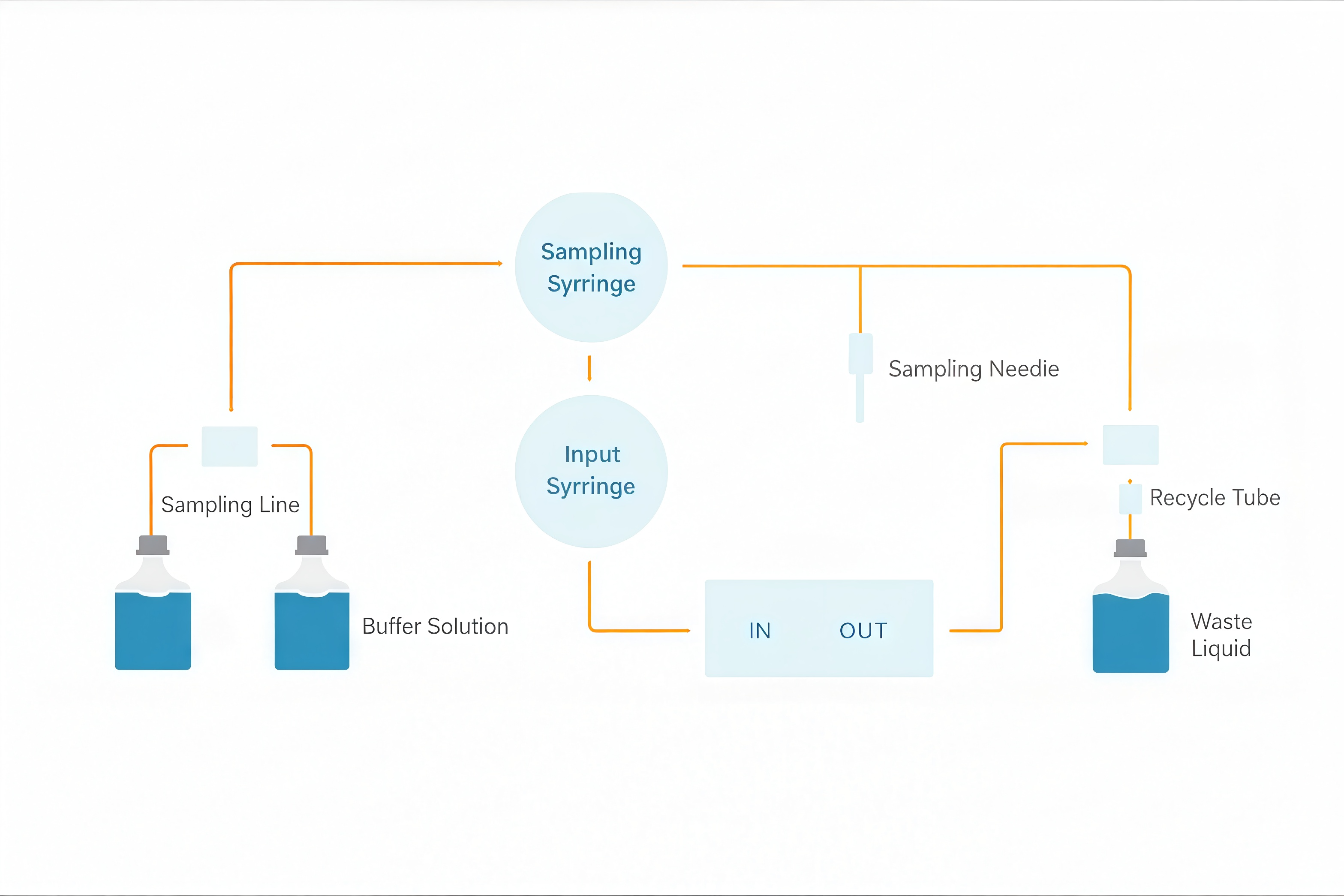

Automatic injection gradient dilution, using a single tube to inject the highest concentration sample, the instrument can automatically recover the remaining sample in circulation, dilute it according to the specified concentration, and automatically complete the concentration gradient experiment.

Micro sample loading, requiring a minimum of 200uL of sample

Sample recycling, achieving the recycling of over 85% of circulating samples
Built in printing function

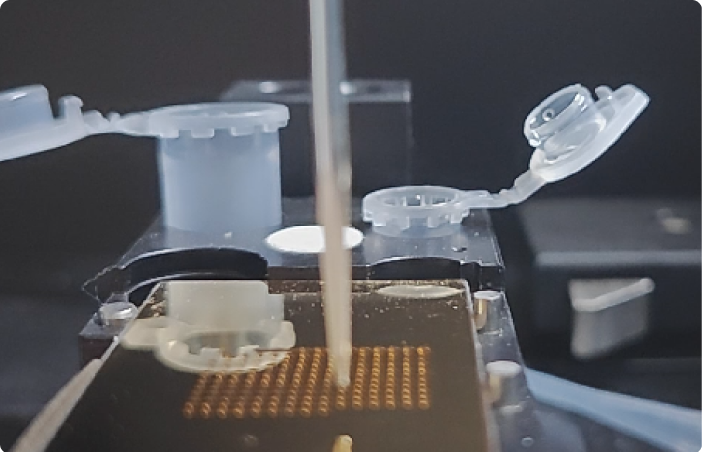

Built in medium throughput printing function, supporting up to 14x14 medium low throughput microarray printing

Support 96 and 384 well plate sampling to meet the low flux detection needs in the laboratory

Cooperate with professional high-throughput inkjet printing equipment to achieve high-throughput printing of 3840 samples per chip, with a single sample dot size of only 50um

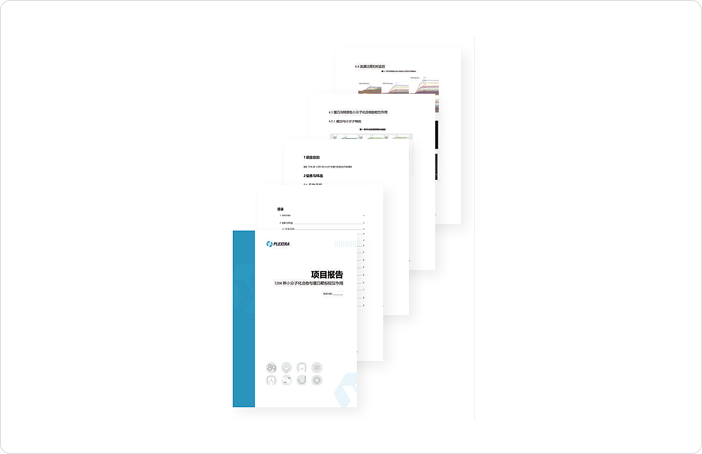

Automatic data analysis and report generation

Synchronize data analysis, automatically complete affinity fitting calculation and report generation

Obtain affinity dynamics data for all monitoring points at once and generate interaction data at the level of 100000

No professional knowledge is required to complete data analysis, fitting, and affinity calculation
