PlexJet
High-throughput contact microarray printing.

Transfer samples from standard 384-well plates to high-density microarrays through controlled multi-pin contact printing.

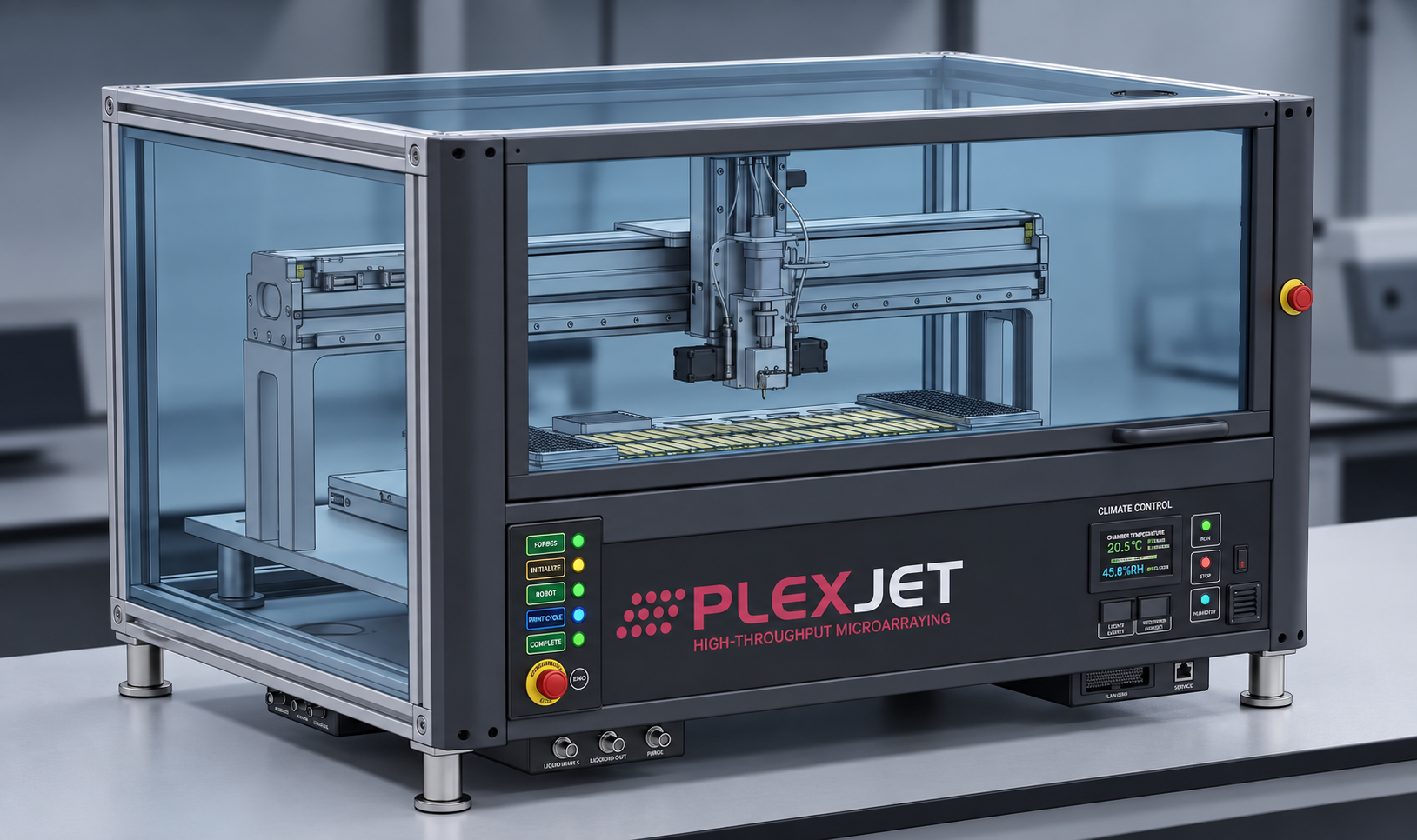

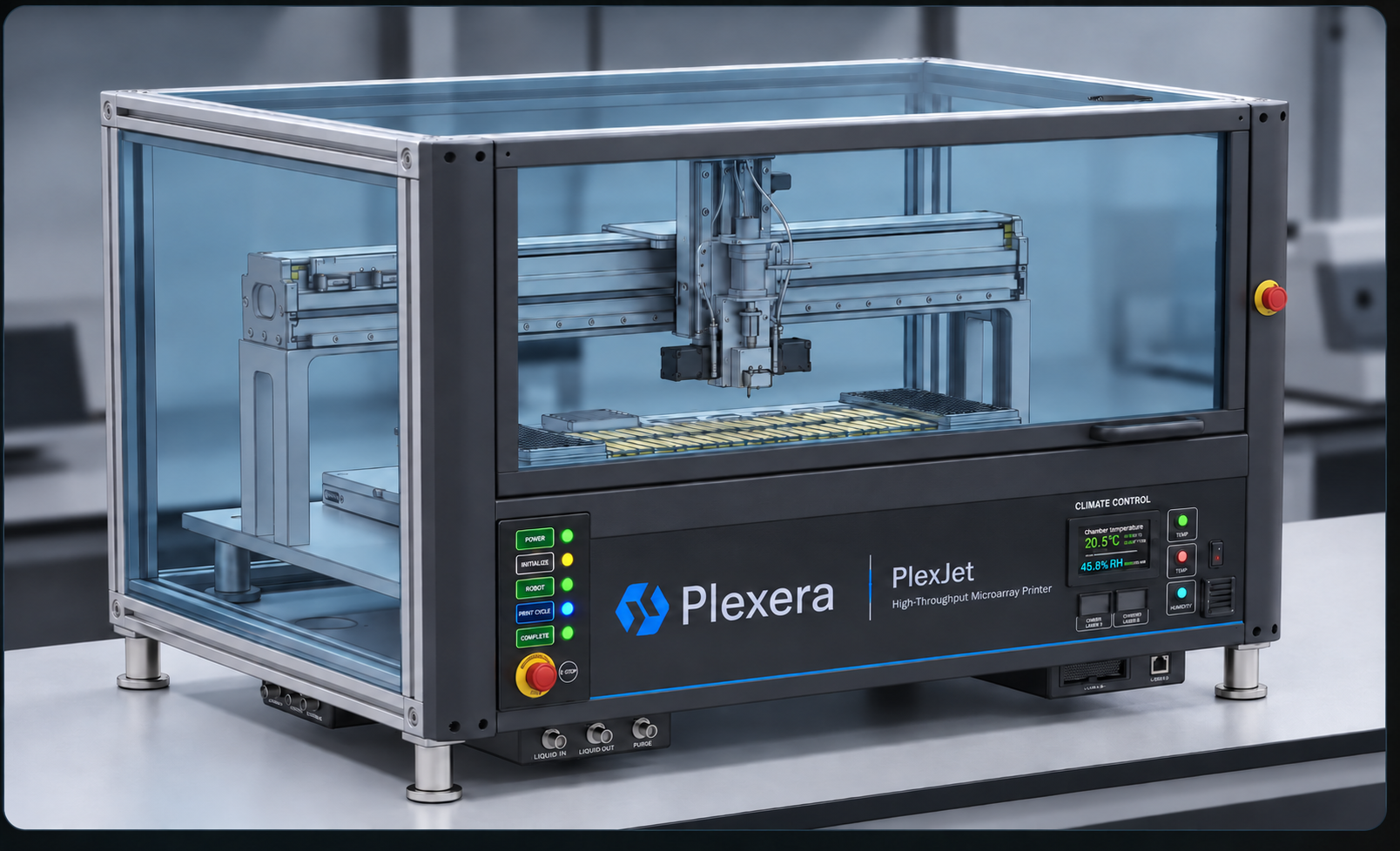

PlexJet high-throughput contact microarray printer
Contact
Microarray printing
384-well
Source-plate format
~40 min
Per 384-well plate
3,840
Spots per chip

CONTACT PRINTING WORKFLOW

From source plate
to high-density array.

PlexJet coordinates plate handling, multi-pin contact transfer and array layout within one controlled process.

  1. 01
    Load the source plate

    Use a standard 384-well source plate and a project-specific sample layout.

  2. 02
    Print by contact

    The multi-pin print head collects samples and deposits them at defined positions on the destination surface.

  3. 03
    Build the array

    Create a dense, repeatable 3,840-spot layout for downstream analysis.

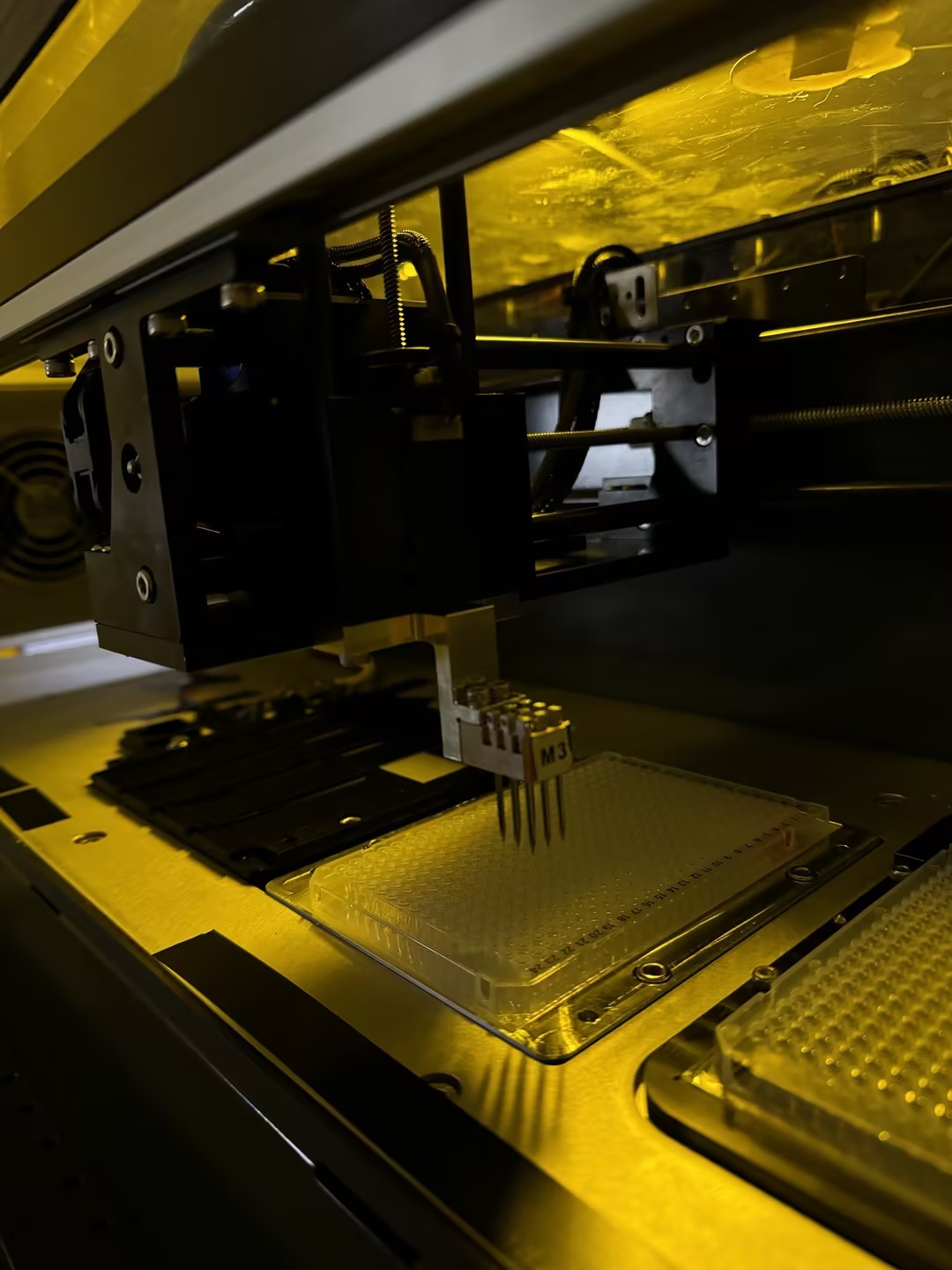

PlexJet multi-pin contact print head positioned above a 384-well plate
Multi-pin contact printing from a 384-well source plate

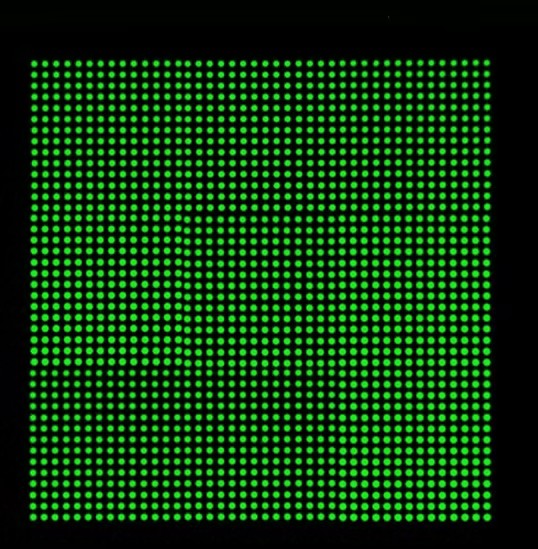

Fluorescent image of a dense printed microarray
Representative fluorescent image of a completed array

PRINTED ARRAY QUALITY

Uniform placement across
a dense array.

High-density spotting creates a consistent array layout that can be visually inspected before downstream interaction measurements.

  • Consistent spot placement
  • Dense array layout
  • Repeatable deposition
  • Visual inspection of the completed array

MULTI-PIN CONTACT PRINTING

Controlled transfer through
a multi-pin print head.

The print head collects samples from a standard 384-well source plate and deposits them by physical contact at defined positions on the chip surface.

  • 01384-well source plates

    Work with a standard laboratory source format.

  • 02Approximately 40 minutes

    Process one 384-well source plate.

  • 033,840 spots per chip

    Create a dense microarray for downstream analysis.

  • 04Programmable layouts

    Define the source-to-destination printing map.

CONTROLLED PRINTING ENVIRONMENT

Stable conditions for
repeatable operation.

10–90%Programmable humidity
Aqueous / DMSOSample compatibility
Air purificationControlled working environment
Automated cleaningSupport for longer batch runs

Proprietary transfer and cleaning functions support stable operation and help reduce cross-contamination between samples.

MICROARRAY APPLICATIONS

One printer.
Multiple array formats.

  • 01Proteins
  • 02Antibodies
  • 03VHH
  • 04Peptides
  • 05Small molecules
  • 06DNA / RNA
  • 07Glycans
  • 08Aptamers

TECHNICAL SPECIFICATIONS

PlexJet specifications

Core operating specifications for the current PlexJet configuration.

Printing methodMulti-pin contact printing
Source-plate format384-well plate
Plate processingApproximately 40 minutes per 384-well plate
Array capacity3,840 spots / chip
Humidity control10–90%
Sample compatibilityAqueous and DMSO-based samples
